Unit 4, Chapter 13 · Waves Transmitting Energy & Information

Light Waves

Big Question

Light can bounce off a mirror, bend as it enters water, and travel from the Sun across empty space to reach your skin — so how is light different from every other wave you've studied, and why does that difference matter?

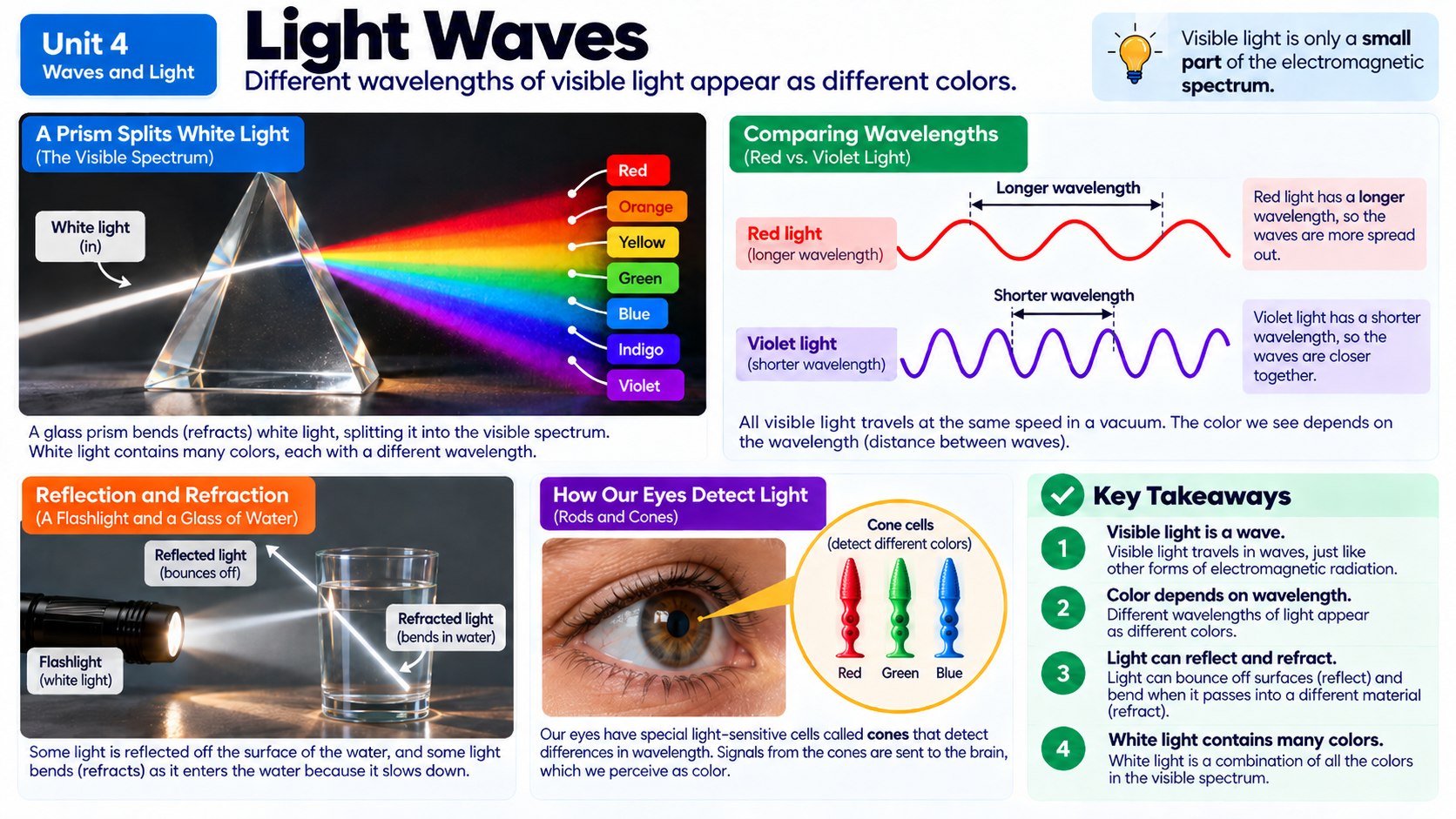

Chapter infographic, Light Waves. Different wavelengths of visible light appear as different colors. The poster works through the idea in labelled photo panels and ends with a list of key takeaways.
the poster to open it full size.

Light Behaves Like a Wave, With One Big Twist

Light bounces, bends, and can be blocked or absorbed just like the mechanical waves you explored with springs and ripple tanks. Shine a flashlight at a mirror and it reflects straight back at you, following the exact same rules of reflection as a wave bouncing off the edge of a ripple tank. Shine it through a glass of water and you'll see it refract, bending as it crosses from air into water because light slows down when it enters a denser material.

But light has one enormous difference from sound: it doesn't need a medium at all. Sound needs air, water, or a solid to travel through, which is why there's no sound in the vacuum of space. Light, however, is an electromagnetic wave — a wave made of vibrating electric and magnetic fields, not vibrating matter — so it travels just fine through the emptiness of space. That's exactly how sunlight crosses 93 million miles of empty space to warm your face.

So why does light slow down at all when it enters a denser material like water or glass? Light travels fastest in the emptiness of a vacuum, at an incredible 300,000 kilometers per second. But glass, water, and even air are packed with atoms, and every time a light wave reaches one of those atoms, it gets absorbed for an instant and then re-emitted, over and over, all the way through the material. Each of those tiny absorb-and-re-emit steps takes a fraction of a second, and all those fractions add up, so the light effectively slows down the deeper it has to travel through matter. That tiny slowdown at the boundary between two materials is exactly what causes the bending you see when a straw appears to break at the water's surface — the part of the light wave that enters the water first slows down before the rest of the wave does, which swings the whole wave's direction just like a shopping cart pulling to one side when one wheel sticks in the mud.

Absorption, Reflection, and Refraction in Everyday Materials

What happens when light hits an object depends on both the frequency of the light and the material it hits. A red shirt looks red because the fabric absorbs every color of light except red, which it reflects back to your eyes. A clear glass window lets most light pass straight through (transmission), while a mirror is built to reflect almost all of it. Black pavement gets scorching hot on a sunny day because dark materials absorb most light energy and convert it into heat instead of reflecting or transmitting it.

Engineers exploit these behaviors on purpose. Sunglasses use tinted materials that absorb certain frequencies of light to protect your eyes. Camera and eyeglass lenses are precisely curved pieces of glass that refract light in controlled ways to focus an image. Mirrors are coated with reflective metal to bounce nearly all light back. Even soundproofing foam in a recording studio is chosen because its bumpy shape and soft material absorb sound waves instead of reflecting them around the room, showing that the same principles — reflection, absorption, and transmission — apply across totally different types of waves.

One Rainbow, One Giant Spectrum

When white light passes through a prism, it splits into a rainbow of colors — red, orange, yellow, green, blue, indigo, and violet. Each color you see is really just visible light at a different frequency and wavelength: red has the longest wavelength and lowest frequency of visible light, while violet has the shortest wavelength and highest frequency. But that rainbow is only a tiny sliver of something much bigger: the electromagnetic spectrum.

The electromagnetic spectrum includes every type of electromagnetic wave, from radio waves with wavelengths longer than a football field, through microwaves, infrared, visible light, ultraviolet, and all the way to X-rays and gamma rays with wavelengths smaller than an atom. Every single one of these is fundamentally the same kind of wave as visible light — just at a different frequency. Higher-frequency EM waves carry more energy, which is why X-rays can pass through soft tissue to photograph your bones, while low-frequency radio waves can safely pass through walls carrying nothing more than a Wi-Fi signal.

Society uses different parts of this spectrum constantly: microwave ovens vibrate water molecules in food to cook it, infrared cameras detect body heat in the dark, ultraviolet light disinfects water and hospital equipment, and radio waves broadcast everything from music stations to the signal your phone uses to make a call. You're surrounded by invisible waves nearly every moment of your life.

There's one more twist worth knowing: mixing colors of light works differently than mixing colors of paint. Combine red, green, and blue light together at full brightness and you get white light — that's called additive color mixing, and it's exactly how the screen you're reading this on works, with tiny red, green, and blue lights combining to create every color you see. Mixing paint, however, works by subtraction: each paint color absorbs certain wavelengths and reflects the rest, so mixing paints together removes more and more wavelengths of light until you're left with a muddy brown or black instead of white. Next time you look closely at a phone or TV screen, or use a magnifying glass on one, you can actually see the individual red, green, and blue lights working together to build the whole picture.

Why Is the Sky Blue and Sunsets Red?

Here's a mystery you've probably never thought to ask about: why is the sky blue during the day, but the Sun turns red at sunset? Both are explained by a phenomenon called scattering, which happens when light waves bounce off tiny particles and molecules in Earth's atmosphere — mostly nitrogen and oxygen molecules, far smaller than the wavelength of visible light itself.

Blue and violet light have shorter wavelengths and higher frequencies than red and orange light, and it turns out that shorter wavelengths scatter far more easily off small molecules than longer wavelengths do. During the middle of the day, when sunlight has a short, direct path through the atmosphere to your eyes, blue light gets scattered in every direction across the entire sky, so no matter where you look, some scattered blue light reaches your eyes. That's why the sky looks blue instead of black, even though sunlight itself is actually a mix of every visible color.

At sunset, the story changes because the Sun sits low on the horizon, so its light has to travel through a much longer stretch of atmosphere to reach your eyes. Nearly all the blue light gets scattered away long before it arrives, leaving mostly the longer-wavelength red and orange light to make it through directly — which is exactly why sunsets glow red, pink, and orange instead of blue.

This same scattering principle explains other everyday sights too: clouds look white because water droplets are big enough to scatter every color of light equally, and the ocean can look a deeper blue on a clear day partly because of how sunlight scatters off water molecules and tiny particles suspended in it. A sight you see nearly every single day, fully explained by nothing more than how differently colored light waves interact with tiny particles in the air.

Real-World Connections

Polarized Sunglasses

Polarized sunglasses block certain light waves reflecting off flat surfaces like water or roads, cutting down glare using the same reflection ideas used to describe how light interacts with materials.

Studying Starlight

Scientists can determine what a distant star is made of just by studying the specific colors of light it gives off, without ever traveling anywhere near it.

How they tie togetherBoth examples depend on carefully studying how light waves interact with matter — either controlling that interaction to cut glare, or reading the information already encoded in the light itself.

Meet the Scientist

A

Astronomers

Astronomers use instruments called spectrographs to split starlight into its individual wavelengths, similar to how a prism creates a rainbow. The exact pattern of colors present or missing tells them what elements a star or planet's atmosphere contains — letting scientists study objects trillions of miles away without ever touching them.

Key Vocabulary

Bold, underlined words in the reading above are clickable too — tap one to see its definition pop out. Or click or tap a card below to reveal the definition.

Electromagnetic wavetap to flip
A wave made of vibrating electric and magnetic fields that can travel through empty space without a medium.
Electromagnetic spectrumtap to flip
The full range of electromagnetic waves, from long, low-frequency radio waves to short, high-frequency gamma rays.
Visible lighttap to flip
The narrow band of the electromagnetic spectrum that human eyes can detect, seen as the colors of the rainbow.
Absorptiontap to flip
When a material takes in a wave's energy instead of reflecting or transmitting it, often converting it into heat.
Transmissiontap to flip
When a wave passes through a material, like light passing through clear glass.
Refractiontap to flip
The bending of light as it passes between materials of different densities, such as air and water.
Prismtap to flip
A transparent object that splits white light into its full spectrum of colors by refracting each wavelength differently.
Vacuumtap to flip
A space completely empty of matter; light can travel through it, but sound cannot.

Explore More

Read

Explore the Electromagnetic Spectrum

NASA Space Place
Open article →
Try the simulation

Bending Light

PhET Interactive Simulations
Launch simulation →

Electromagnetic Waves

FuseSchool - Global Education on YouTube
Watch on YouTube →

Chapter Review

1. Why can sunlight reach Earth through the vacuum of space, but sound cannot?

2. A red shirt appears red in sunlight because the fabric mostly:

3. Which part of the electromagnetic spectrum has the shortest wavelength and highest energy?

4. Why does a straw appear to bend where it enters a glass of water?

5. A mirror and a pair of sunglasses handle light very differently on purpose. What is happening?

California Science Test (CAST) Practice

CAST-Style Practice Item

Light travels at about 300,000 kilometers per second in a vacuum, but it slows down by different amounts depending on the material it enters. A student looked up the approximate speed of light in four common materials, shown in the table below.

MaterialSpeed of Light (km/s)
Air299700
Water225000
Glass200000
Diamond124000

Light traveling through air strikes each of these materials at an angle. Based on the data, entering which material would cause the light to refract, or bend, the most?
